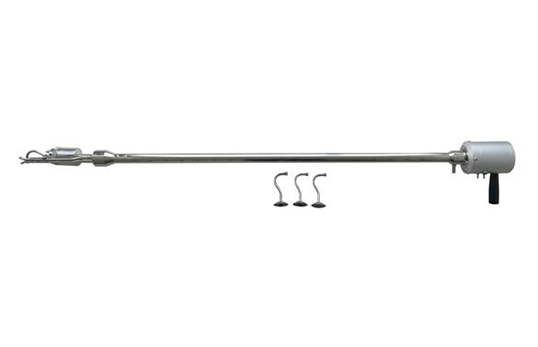

Product name：JC-88R type heating low concentration smoke sampling tube -
Order number： -
Model：JC-88R -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction

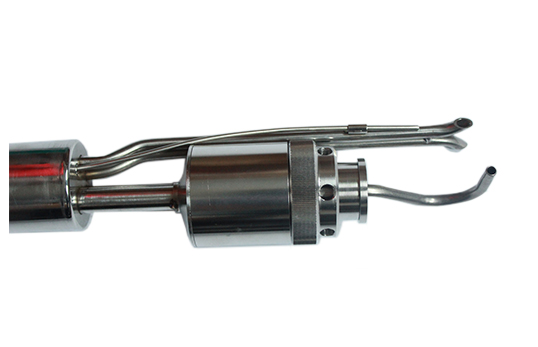

JC-88R heating low-concentration smoke and dust sampling tube is suitable for low-concentration sampling of flue dust. The head of the sampling tube or the whole adopts the working method of constant temperature heating to ensure that water passes through the filter membrane in the state of steam and eliminates condensed water. It needs to be used with an automatic smoke, dust and flue gas tester. Low concentration sampling 1 ~ 50mg/m3 can also be used for <500mg/m3, and the total weight of the sampling head is ≤18mg. Using special technology, it is made of stainless steel and titanium alloy, the sampling medium is built-in, and the overall weight is less than 18mg. One-piece sampling nozzle (sampling nozzle, elbow, filter membrane, support net, pressed aluminum foil), the sampling head is dried, sampled, and weighed as a whole. The amount of soot* is close to the true value. Lighten the work intensity, the data will be more accurate.
2. Product parameters
The main parameters
parameter range
The main parameters
parameter range
Sampling gun length
1. 5 meters (length can be customized)
Heating temperature range
（60～180）℃ Factory setting 110
Pitot tube coefficient
0.84
Temperature measurement range
(0～500)℃
membrane diameter
F47mm
Working power
DC24V
Sampling nozzle diameter
5㎜、6㎜、8㎜、10㎜、12mm
Working power
100W
Product configuration
1. Aluminum foil ring, filter membrane, stainless steel support net, filter membrane installation tool, gland fastening tool, aluminum alloy box 2, low concentration sampling gun Option.
3. Product features
1. The filter membrane is placed in the integrated sampling nozzle, and the overall weighing method is adopted, the sample has no loss, and the sampling error is small and compact.
2. It is suitable for the determination of low-concentration particulate matter from fixed pollution sources, and the minimum detection limit is 1mg/m3.
3. The filter membrane with a diameter of Φ47mm is used to collect particulate matter, which is in line with international standards.
4. It is suitable for the measuring hole diameter of 80mm specified in the standard GB/T16157.
5. The sampling nozzle and elbow are made of titanium, which has stable performance, corrosion resistance, light weight and low self-loss.
6. The standard is 1.5m sampling tube, and the length can be customized according to user needs.
7. The sampling tube, S-type pitot tube and platinum resistance are integrated, and the whole machine is combined design.
8. The constant temperature heating of the gun head or the whole eliminates the condensed water, reduces the collection resistance, and prevents the condensed water from flowing backwards.
