1. Product introduction

ZF-5010, the optical part of line flue dust meter includes laser light source, power control, photoelectric sensor, scattered light receiving part. The 650nm beam emitted by the laser enters the emission source at a slight angle, and the laser beam interacts with the dust particles to generate scattered light. The backscattered light enters the sensor through the receiving system and is converted into an electrical signal for processing. The circuit part realizes photoelectric conversion and laser beam conversion. Modulation, signal amplification, demodulation, power control of light source, V/I conversion and HMI display functions. The calibrator is used to generate a stable optical signal and perform zero and span calibration of the instrument. JCY-MS100 flue dust monitor is an online dust analysis product independently developed and produced by the company. It adopts the mainstream laser backscattering measurement technology, and its key components are imported.
This product is used for continuous monitoring of the concentration of particulate matter emitted by various pollution sources. It can be equipped with a continuous flue gas monitoring system (CEMS), or can be connected to a single or multiple sets of smoke monitoring network, sharing a set of data acquisition and processing background.
This product is widely used in thermal power generation, iron and steel metallurgy, petrochemical chemical industry, cement production, pottery, waste incineration and other enterprises in various power generation boilers, industrial kilns, industrial boilers, smoke emission monitoring and monitoring and control of flue gas desulfurization and dust removal projects.

2. product parameters

1. Mechanical characteristics Body: aluminum alloy material, the surface is oxidized and blackened Weight: 10KG Size: 160 × 160 × 280mm Protection class: IP65

2. Measurement performance accuracy: ±2%FS Repeatability: ±1%FS Measurement range: 0-200mg/m³, 10g/m³, chimney width can be customized: 1-15m Power: <3W Power supply: DC 24V±10%

3. Temperature requirements Ambient temperature: -20~45℃ Relative humidity: 0-100% RH MAX flue gas temperature: 600℃ (higher temperature can be customized)

4. Interface characteristics Analog output: 4-20mA, load 800Ω Digital interface: RS485 (optional) 2 relay outputs (optional), 2A/30V Human-computer interaction: infrared remote control + large-screen LCD display

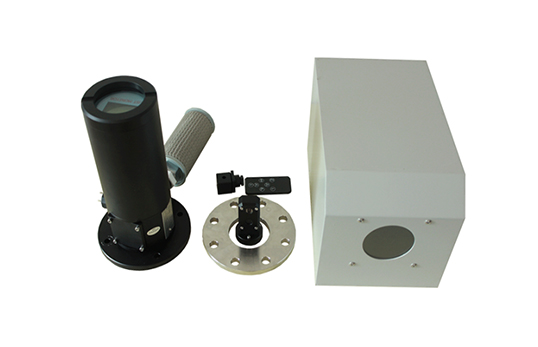

5. Equipment list (standard) 1 host, 1 set of flange components, 1 calibration module, 1 remote control, 1 hexagon socket head screw wrench, 6 sets of wing nuts, 6 sets of combination screws, 1 certificate of conformity, 1 warranty card and 1 manual.

6. Optional items (purging unit) 1 set of main engine rain cover assembly, 1 set of blower and supporting products, 1 blower rain

cover

The beam wobble caused by the uneven refractive index caused by the uneven temperature of the flue gas.

2. Single-ended installation, no need for optical path alignment.

3. With on-site display function, the dust concentration can be read directly on the spot.

4. After the laser beam is modulated, the anti-interference ability of the system can be greatly improved.

5. The design of the instrument implements the idea of "tool-free" on-site installation to minimize the complexity of on-site installation.

6. Adopt standard (4-20) mA industry standard current output, easy to connect.

7. The overall power consumption of the instrument is very small, about 3w.

8. General standard setting parameters can be applied to flue wall thickness less than 400mm, flue diameter larger than the nameplate of the instrument, and the size of the measurement area can be customized under special requirements. Users can also adjust it with the approval and guidance of maintenance personnel.
