1. Product overview

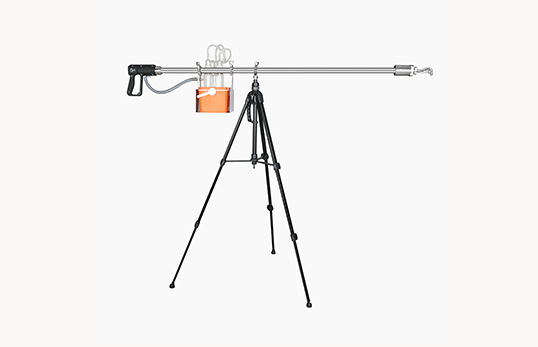

The collected gas passes through a gun body lined with a tetrafluoroethylene tube heated at a constant temperature, passes through a tetrafluoroethylene membrane filter, and then passes through an impact absorption bottle to collect solid particulate chloride and gaseous chloride respectively.

2. Main Features

Gun body constant temperature heating

Lined tetrafluoroethylene pipe

PTFE membrane filter

Adopt DC24V heating to ensure the safety of operators

Fourth, the main parameters

Working power supply: DC24V/10A

Sampling gun heating temperature: 120℃

Sampling tube length: 1 meter (can be customized to lengthen)

Supporting power supply: DC24V /10A

Filter material: tetrafluoroethylene

Weight: 2KG
