1. Product overview

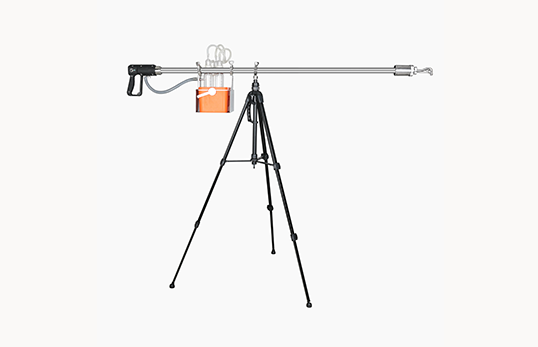

The stationary pollution source fluoride sampling tube is suitable for the collection and determination of fluoride in the stationary pollution source exhaust gas, and can be used together with the JCY-80E(S) type fume sampler or similar products. The glass fiber filter cartridge (or quartz fiber filter cartridge) is equipped with three 250ml shock absorption bottles, and the full name of the gun head and the gun body is heated to collect fluoride samples in the organized exhaust gas.

2. Main Features

Sampling tube, S-type pitot tube and platinum resistance integrated, the whole machine is combined design

The front end of the filter cartridge is heated, which can effectively remove water and improve the sampling accuracy

The sampling tube has automatic heating and constant temperature throughout the whole process, and the back-end ice bath condenses, which can collect particulate, vapor and gaseous fluorides.

Equipped with a variety of serial sampling nozzles, suitable for collection of different flow rates

The sampling tube of the whole machine is made of stainless steel (titanium alloy can be customized), which is convenient to use and easy to carry.

Low voltage DC power supply, safe and stable use.
