1. Product introduction

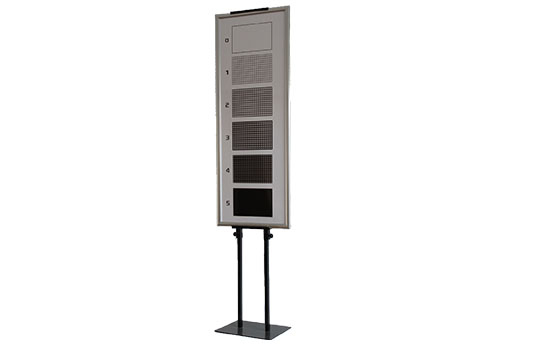

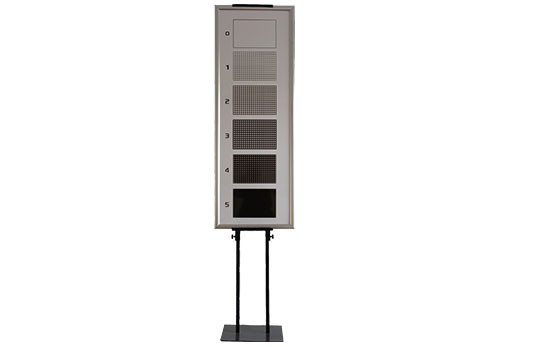

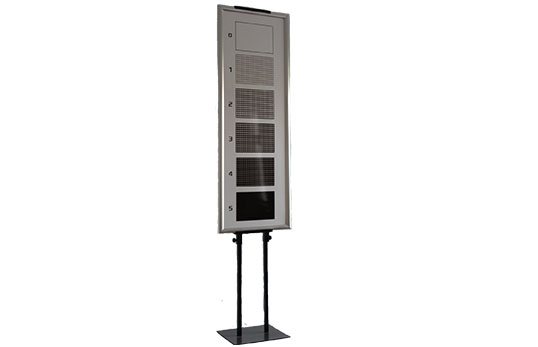

JCP-HB Ringelmann smoke concentration map is a method for monitoring smoke according to the visual blackness of smoke. By comparing the smoke color at the outlet of the emission source with the Ringelmann smoke concentration map, when a certain exhaust color is close to the color block, it is considered that the smoke concentration is consistent with the blackness level of the color block. This method is simple, convenient and low-cost. It makes the test of flue gas blackness quick and easy, and at the same time ensures the accuracy of monitoring work. Therefore, it is listed as one of the commonly used flue gas emission monitoring methods in many countries. . Practice has proved that for coal-fired flue gas and the like, through measurement, it is possible to analyze the degree of air pollution caused by flue gas emissions and the utilization rate of fuel combustion, thereby providing an effective monitoring method for environmental management and energy conservation.

2. Product parameters

1. Ringelmann blackness level 0-5;

2. The observation distance is 10 to 500 meters;

3. Pattern size: 105cm*35cm;

4. With bracket ;

3. Product Features

1. Quick and easy

2. Accuracy is improved

3. Commonly used flue gas emission monitoring methods.
