1. Product overview

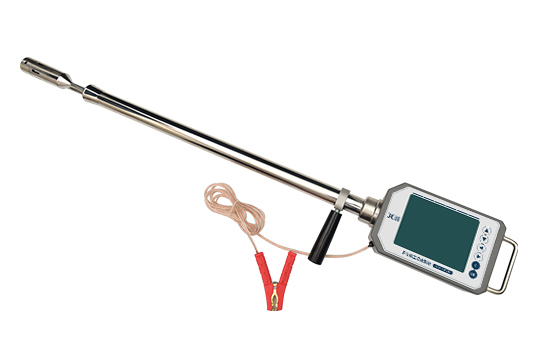

The multi-function flue gas humidity detector ( hereinafter referred to as the instrument) is a high-precision portable integrated flue gas humidity and flow rate detector. The instrument adopts imported sensors, and has its own temperature and pressure compensation correction. It has the advantages of wide operating temperature range, etc. It is widely used in the determination of parameters such as flue gas humidity, flue gas flow rate, flue gas flow, standard dry flow, dynamic pressure, static pressure and flue temperature of boilers, kilns and various exhaust ducts.

Scope of application

This instrument uses the S -type pitot tube method to measure the flue gas flow rate in the pipeline . It is widely used in environmental protection, occupational health, labor, safety supervision, military, scientific research, education and other fields.

2. Technical characteristics

Imported high-precision differential pressure sensor is adopted, with small sensor drift and high measurement accuracy;

The original temperature and humidity correction and compensation algorithm is adopted to eliminate the influence of flue temperature and pressure on the measurement results, and the measurement accuracy is higher;

Built-in rechargeable lithium battery, one charge can work continuously for more than 4 hours;

Double-layer dust filtration on the sensor surface effectively protects the measurement results from the influence of dust;

Adopt integrated design to reduce external interference and easy to use;

Automatically calculate parameters such as the average flow rate, average pressure, and flue gas flow of the gas.

With automatic zero point correction, software calibration function to ensure measurement accuracy;

With the function of flue distribution, it can automatically recommend the number of measurement points and the distance between the measurement points;

Large-capacity data storage, can store 500 sets of data files;

5 -inch bright color display screen, beautiful interface, human-machine interface adopts touch screen operation mode;

Built-in bluetooth module, can print data with bluetooth printer.

3. Technical indicators
