1. Product introduction

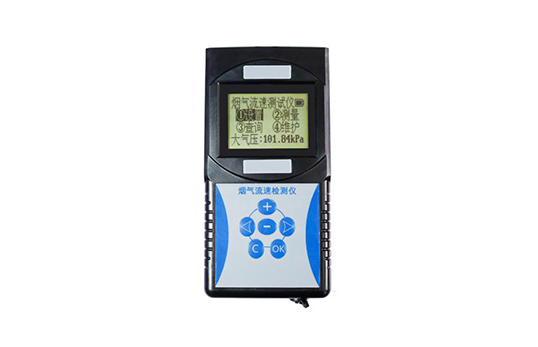

JCY-6 flue gas velocity detector (hereinafter referred to as detector) is a high-precision portable flue gas velocity detector, which is widely used in boilers, kilns and various exhaust ducts for flue gas velocity, flue gas flow, standard Determination of parameters such as dry flow, dynamic pressure, static pressure and smoke temperature.
Scope
of application This instrument uses the pitot tube method to measure the gas flow rate in the pipeline. For detection, the instrument adopts imported high-precision sensors, and the sensor drifts less than 0.15Pa within 24 hours, which is especially suitable for monitoring the low flow rate of the flue.

2. Product parameters

3. Product Features

1. Imported high-precision differential pressure sensor is used, and the 24-hour pressure drift is less than 0.15Pa. ;
2. High flow velocity measurement accuracy, the lower limit of measurement can reach 0.3m/s;
3. Built-in rechargeable lithium battery, which can work continuously for more than 48 hours on a single charge;
4. Hand-held measurement monitor, light and portable, easy to operate;
5. Automatically calculate parameters such as the average flow rate, average pressure, and flue gas flow of the gas.
6. With automatic zero point correction and software calibration function to ensure measurement accuracy;
7. With flue distribution function, automatically recommending the number of sampling points and distance between measuring points;
8. Large-capacity data storage, which can store 800 sets of data files;
9 , Wide temperature liquid crystal display, Chinese operation interface;
10. Large size, wide temperature highlight color display;
11. With power-off protection function, the sampling data will not be lost during power-off;
12. Optional Bluetooth module, optional Data printing with bluetooth printer
