Product name：JCY-13B type resistance-capacitance method flue gas humidity detector -
Order number： -
Model：JCY-13B -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc
- Product Introduction
-
1. Product introduction

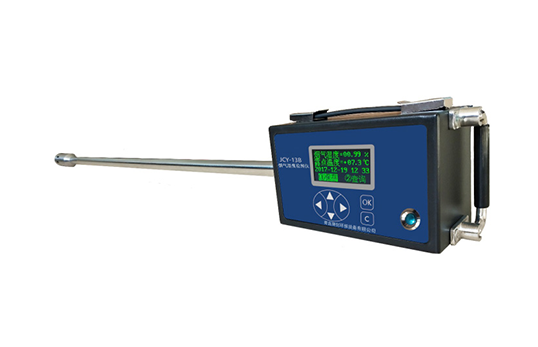

JCY-13B Flue Gas Humidity Detector (hereinafter referred to as the detector) is a humidity detection instrument that measures the moisture content in the flue gas by the resistance-capacitance method. , corrosion resistance, wide temperature range and other advantages, widely used in boilers, kilns and flue gas humidity measurement of various exhaust ducts.
Scope
of application This instrument is used to measure the moisture or moisture content of flue gas in boilers, kilns and various exhaust ducts. It is suitable for use in environmental protection, occupational health, labor, safety supervision, military, scientific research, education and other departments.
2. Product parameters
Technical indicators
parameter range
Resolution
Accuracy
humidity
(0～60)%
0.01%
Not more than ±2.0%
Atmospheric pressure
(50～110) kPa
0.01 kPa
Not more than ±2.0%
Flue gas temperature
180°C (Note: The instrument cannot be used under conditions above 180°C)
Response time
<30S
temperature control
(0-160)℃
Sampling tube length
1.2 meters (can be customized)
battery working time
more than 3 hours
Machine power consumption
<60W
Total Weight
About 3.5kg
Operating temperature
(-20-60)℃
Operating Voltage
Built-in battery or AC220/DC24 voltage adapter
battery working time
more than 3 hours
Total Weight
About 3.5kg
3. Product Features
1.Using the original imported humidity sensor, with high measurement accuracy, corrosion resistance and long service life;
2.Optional built-in lithium-ion battery, which can work continuously for more than 3 hours on a single charge;
3.Using a unique temperature and humidity The compensation algorithm is modified to eliminate the influence of flue temperature and pressure on the measurement results, the measurement resolution can reach 0.01%, and the measurement accuracy is higher;
4. Double-layer dust filtration on the sensor surface effectively protects the sensor from the influence of dust;
5. The surface of the sensor has a heating function to prevent condensation on the surface of the sensor and effectively protect the sensor;
6. The integrated design reduces external interference and is easy to use.
7. The operation interface is simple
8.can store 1000 sets of data files;
9.large size, wide temperature highlight color display;
10. built-in Bluetooth module, optional Bluetooth printer for data printing
