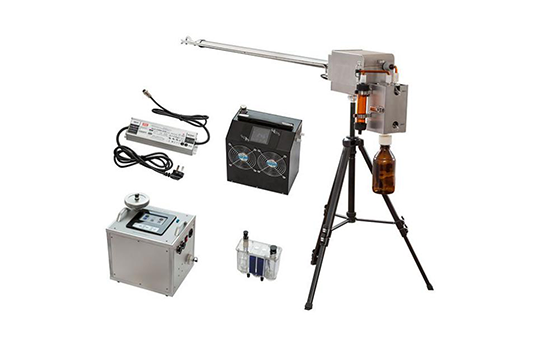

Product name：JCY-3030 Exhaust Dioxin Sampler -
Order number： -
Model：JCY-3030 -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc
- Product Introduction
-
1. Product overview
It is mainly used for sampling dioxins discharged from pollution sources, and is widely used in the environmental protection acceptance and supervisory testing process of the completion of construction projects of hazardous waste incineration facilities, waste incineration facilities and cement kiln co-disposal facilities for hazardous waste. dioxin detection, as well as dioxin emission detection in cremation sites and domestic waste incineration facilities.
2. Product Features
1. Based on the principle of parallel isokinetic sampling of pitot tubes, automatic tracking of flue gas flow rate and isokinetic sampling; high tracking accuracy ,
fast.

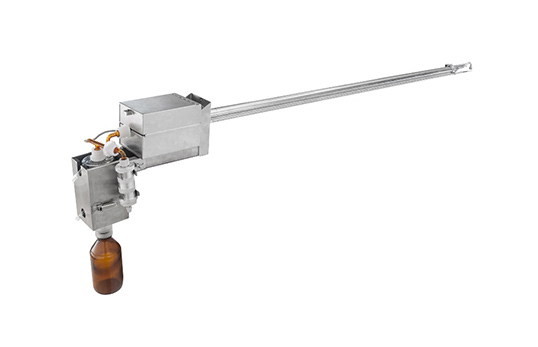

2. Sample inert material in the sampling gas path to reduce pollution. The titanium sampling tube is replaceable and equipped with multi-specification titanium sampling nozzles to
meet isokinetic sampling in various working conditions; the sampling gas circuit is automatically controlled by constant temperature heating; the filter cartridge collects particulate samples, and the
adsorption column collects gaseous samples.
3. A large particle sample collection device is connected in series in front of the filter cartridge, which reduces the amount of samples collected in the filter cartridge and avoids the clogging of the filter cartridge,
so that continuous sampling can be successfully completed, and it is capable of synchronous detection of the removal efficiency of the dust collector.
4. Modular design, the whole system is small in size, light in weight, easy to carry and transport, and easier to assemble and use on site.
5. Automatic heating and cooling temperature control system, the temperature control system has fast speed, high precision and good stability.
6. With automatic gas leak detection function.
7. It has the functions of automatic water removal in the air circuit and anti-suction of particulate matter, which can effectively prolong the service life of the sampler.
8. With USB interface, support U disk export and data printing.
9. Automatically calculate the cumulative sampling volume, convert it into standard volume in real time according to atmospheric pressure and temperature, and display it.
3. Product parameters
The main parameters
parameter range
Resolution
Accuracy
Remark
Sampling flow
( 5-60 )L/min
0.1L/min
Better than ±2.0%
-
flue gas pressure
(0-2000)Pa
1Pa
better than ±2%
-
flue gas static pressure
(-20~20) kPa
0.01kPa
better than ±4%
-
Pressure before flowmeter
(-30~0 )kPa
0.01kPa
Better than ±2.5%
-
temperature before flowmeter
(-55~125)°C
0.1°C
Better than ±1.5%
-
flue gas temperature
(0 ~ 500) ℃
1°C
better than ±3%
-
Sampling tube heating temperature
115 ℃
1°C
better than ±3%
Cartridge room temperature
115 ℃
1°C
better than ±3%
Gas phase adsorption column temperature
<30°C
0.1℃
Better than ±1.5%
moisture content
(0~60)%
0.1%
Better than ±1.5%
-
isokinetic suction flow
(5~45)m/s
--
better than ±5%
-
Sampling pump load capacity
When the flow is 50 L/min, the load is ≥ 50 kPa
-
Dimensions
36 0 * 150 * 3 50mm
Instrument noise
<70dB(A)
Total Weight
about 4 kg
Power consumption
< 600W _
Working power
AC220V±10%, 50Hz
