1. Product introduction

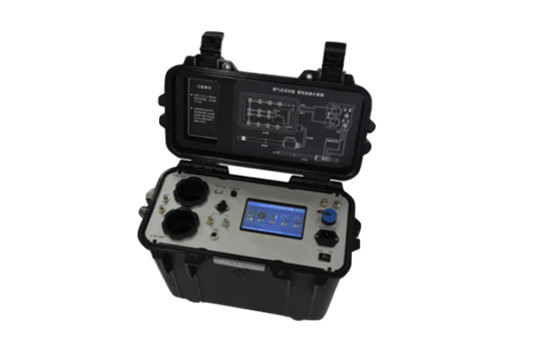

JCY-6030 series flue gas mercury sampler meets the requirements of US EPA Method 30B and HJ 543-2009 standards. It can be used to collect gaseous total mercury in the exhaust gas of pollution sources, and can also be used to monitor gaseous mercury in flue gas. Parameters such as concentration, flue gas flow rate, flue gas temperature and oxygen content. The instrument is mainly used to monitor the content of gaseous mercury in the exhaust gas of coal-fired power plants. It is widely used in environmental monitoring, industrial and mining enterprises, labor hygiene, scientific research institutions and other departments.

2. Product Features

1. Meet the sampling requirements of EPA Method 30B and HJ 543-2009 at the same time;

2. Both air paths adopt high-performance ultra-bass diaphragm pump with long service life;

3. Two completely independent sampling channels, the sampling time, sampling flow and independent start can be set separately;

4. Adopt graphic color touch display screen, Chinese menu operation;

5. Using a double-chamber drier to obtain dry-based standard gas;

6. Integrated sampling probe, integrating S-type pitot tube, platinum resistance and sampling cavity;

7. The sampling probe has an independent heating function, accurately controls the temperature of the sampling chamber, and the temperature is adjustable;

8. AC and DC dual-use, built-in high-energy lithium battery, can work continuously for more than 6 hours;

9. The imported flow pressure gauge can realize constant current sampling and high flow control accuracy;

10. Automatically convert actual flow, standard flow, actual volume and standard volume;

11. With USB interface, data can be exported through U disk;

12. High-brightness touch display screen, graphical operation interface;

13. During the sampling process, the power failure data is automatically protected, and the incoming call continues to sample;

14. The 30B sampling tube has a constant temperature function, which can precisely control the temperature of the sampling chamber, and the temperature is adjustable;

15. The flue gas sampling pipe and hose are heated at a constant temperature throughout the process, and the gas path is made of non-adsorption material;

16. There is an ice bath box, which can accommodate 14 large bubble absorption bottles;

17. Fault detection automatic protection

18. Automatic leak detection function

19. Software parameter calibration

20. User password protection

3. Working conditions

4.1 Working power supply: AD220V±10%, 50Hz
4.2 Ambient temperature: -20 ~ 50 ℃
4.3 Ambient humidity: 0 ~ 85 %
4.4 Ambient atmospheric pressure: 86 ~ 106 KPa
4.5 Applicable environment: Non-explosion-proof occasions

4. Product parameters
