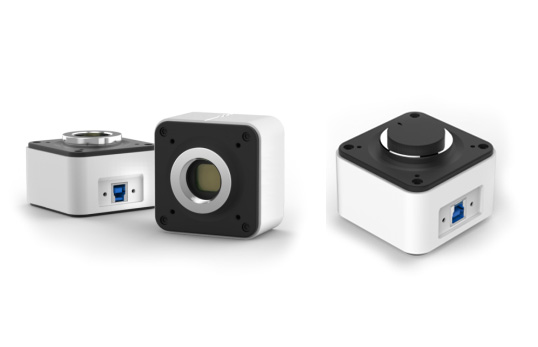

XS500Pro series industrial cameras

Core functions

"Live" image stitching

XS500Pro series industrial cameras are equipped with Dilun's new computational imaging software Mosaic 2.0, which provides you with the "real-time image stitching" function. You can simultaneously generate a large stitched image within a few seconds of moving the stage, which is light, smooth and worry-free!

" Real Time " Depth Fusion

XS500Pro series industrial cameras also provide real-time depth-of-field fusion function. Turn the focus ring to shoot different depth-of-field points and generate clear images with large depth-of-field, which is fast, accurate and efficient!

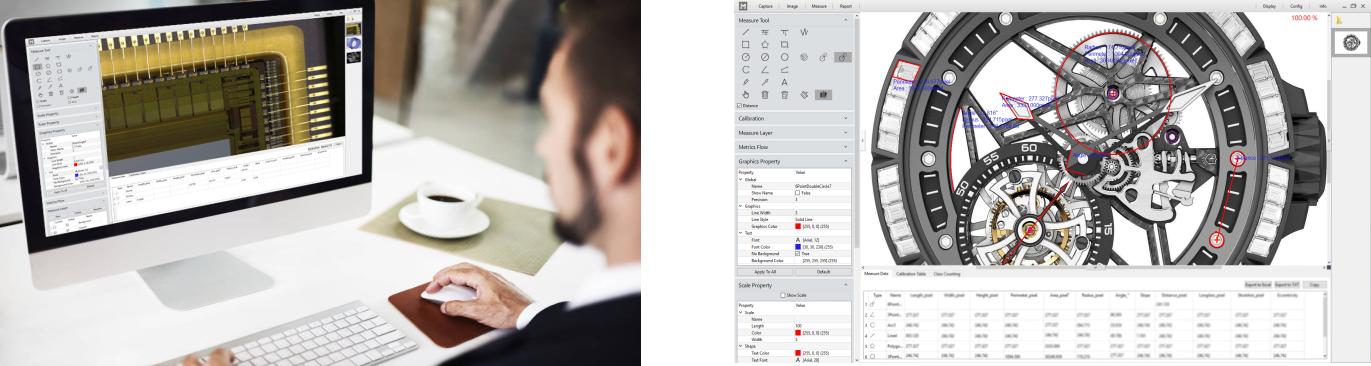

Efficient Image Acquisition - Edit -Measure-Report Output

Starting from the user operation experience, it provides a complete series of workflows of image acquisition - editing -measurement- report output, optimizing the operation process, greatly saving your operation time and improving your work efficiency !

XS500Pro 500Pro brightfield, fluorescence, polarized imaging, all handy.

The XS500Pro 500Pro inherits the core color reproduction technology of Dilun ISP , which can effectively improve the color deviation of the sensor's spectral response and effectively restore the true color under the microscope field of view. Excellent imaging performance, whether it is brightfield, fluorescence, or polarized imaging, it can be handy !

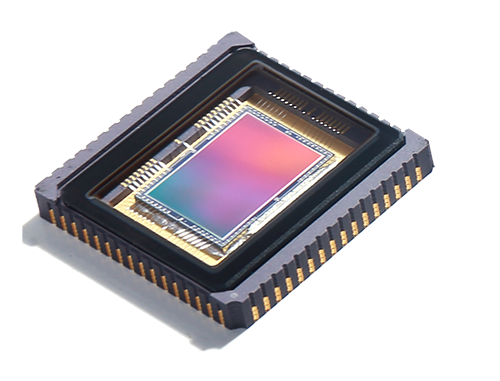

Sony Professional CMOS Sensor

Using Sony's 5 -megapixel CMOS sensor IMX264 , the target surface size is 2/3", the pixel size is 3.45μm, and the maximum resolution of the captured image can reach 2448 x 2048. The image captured under a low magnification lens, even if it is magnified several times, still Presented clearly.

Advanced global shutter technology

Using global shutter technology, all pixels are exposed at the same time, not only to track and capture dynamic samples, but also to obtain sharp images without distortion and distortion when shooting fast-moving samples!

USB 3.0 stable high-speed transmission

Simple and convenient while ensuring a stable high transfer rate, allowing fast focusing at high resolution. At full resolution, fast imaging can be achieved at a rate of 35 frames per second .

XS500Pro fluorescence microscope system imaging camera parameters:
