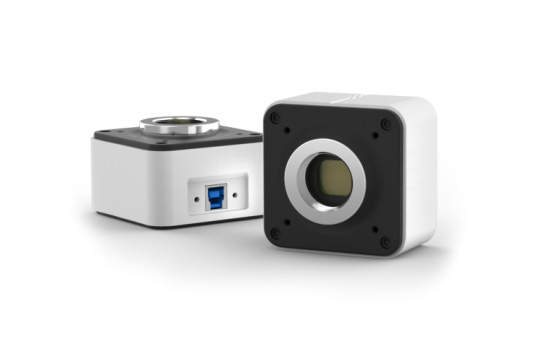

Core functions of XS630 microscope camera:

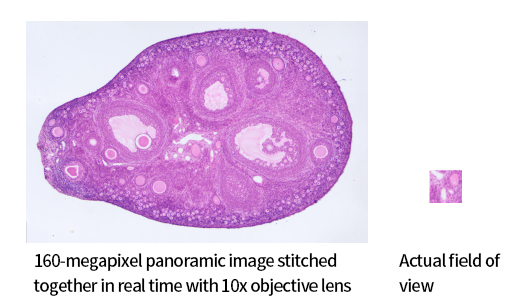

"Real-time" image stitching
XS630 series industrial cameras are equipped with Dilun's new computational imaging software Mosaic 2.0, which provides you with the "real-time image stitching" function, which can simultaneously generate large stitched images within a few seconds of moving the stage. Picture, brisk, smooth and worry-free!

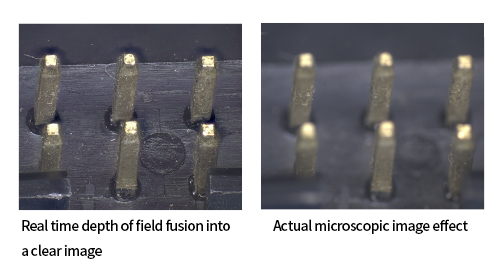

"Real Time " Depth Fusion

XS630 series industrial cameras also provide real-time depth-of-field fusion function. Turn the focus ring to capture different depth-of-field points and generate clear images with large depth-of-field, which is fast, accurate and efficient!

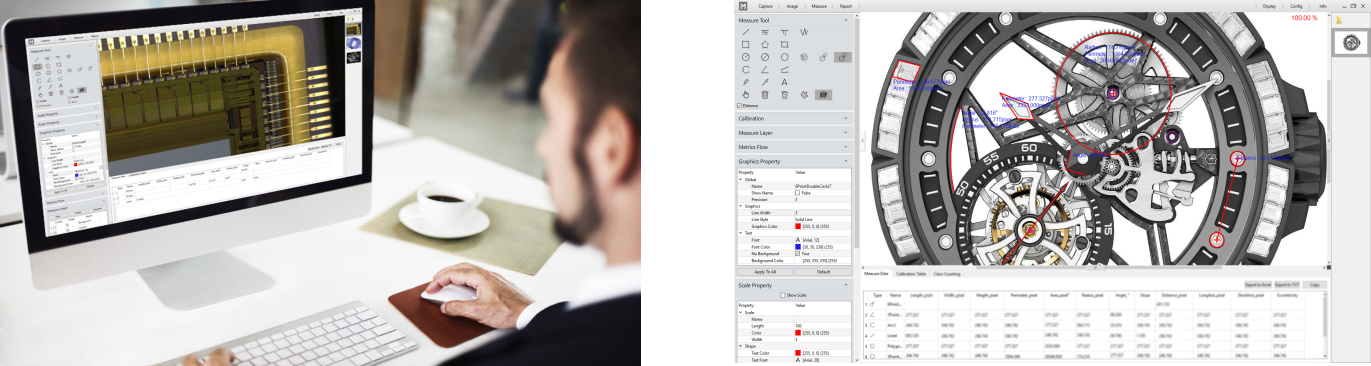

Efficient image acquisition-editing-measurement-report output
Starting from the user's operating experience, it provides a complete series of workflows for image acquisition-editing-measurement-report output, optimizes the operation process, greatly saves your operation time, and improves your work efficiency!

XS630 brightfield, fluorescence, polarized imaging, all handy
XS630 beauty inherits the core color reproduction technology of Dilun ISP, which can effectively improve the color deviation of the sensor's spectral response, and accurately restore the true color under the microscope field of view. Excellent imaging performance, whether it is brightfield, fluorescence, or polarized imaging, it can be handy!

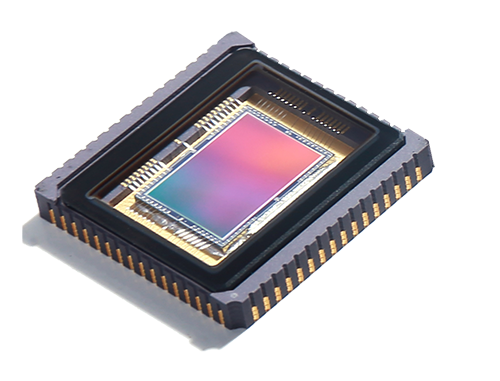

Sony's professional CMOS sensor
adopts Sony's 6.3 million pixel CMOS sensor IMX178, the target size is 1/1.8", the pixel size is 2.4μm, and the maximum resolution of the captured image can reach 3072 x 2048. The image captured under the low magnification lens, even if the magnification number times, it is still clearly displayed.

Advanced Global Shutter Technology
Using Global Shutter technology, all pixels are exposed at the same time, not only can dynamic samples be tracked and captured correctly, but also clear images without distortion and distortion when shooting fast-moving samples!
USB 3.0 stable high-speed transfer
Simple and convenient while ensuring a stable high transfer rate, allowing fast focusing at high resolution. At full resolution, fast imaging at a rate of 40 frames per second can be achieved.

XS 630 microscope camera parameters:
