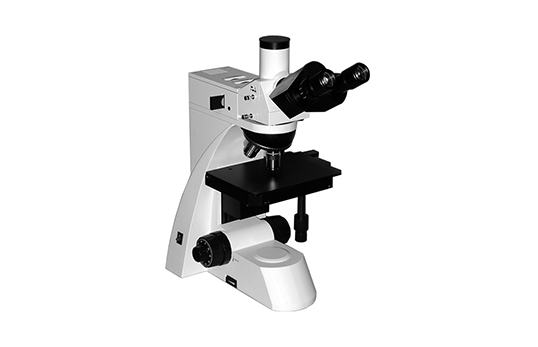

Product name：JC-XTL-16A Epi-metallurgical microscope -
Order number： -
Model：JC-XTL-16A -
Stock status：Delivery according to contract -
Logistics：Delivery according to contract
- Product Introduction
-
1. Product introduction
JC-XTL-16A upright metallographic microscope is suitable for microscopic observation of opaque objects. This instrument is equipped with an epi-illuminator, a long-distance plan achromatic objective lens (without cover glass), a large-field eyepiece and a built-in polarized light observation device. , electronics and other research ideal instruments. It is suitable for use in schools, scientific research, factories and other departments.
2. Product parameters
model
XTL-16A
eyepiece
Large field of view WF10X(Φ18mm)
objective lens
Long distance plan achromatic objective (without cover glass) PL 5X/0.12
Long-distance plan achromatic objective (without cover glass) PL L10X/0.25
Long-distance plan achromatic objective (without cover glass) PL L20X/0.40
Long distance plan achromatic objective (without cover glass) PL L50X/0.70
eyepiece tube
Trinocular, tilted 30˚, (built-in polarizer, switchable)
Epi-illumination system
6V 20W, halogen lamp, brightness adjustable
Epi-illuminator with field diaphragm, aperture diaphragm, polarizer, (yellow, blue, green) color filters and frosted glass
Focusing mechanism
Coarse and micro-movement coaxial focusing, micro-movement grid value: 2μm, with locking and limit device
converter
Four holes (inward ball positioning)
Stage
Double-layer mechanical mobile type (size: 210mmX140mm, moving range: 75mmX50mm)
Instrument options:
name
Category/Technical Parameters
eyepiece
Large field of view WF16X(Φ11mm)
Divide 10X(Φ18mm) grid value 0.1mm/grid
objective lens
Long distance plan achromatic objective (without cover glass) PL L 40X/0.60
Long-distance plan achromatic objective (without cover glass) PL L 60X/0.75 (spring)
Long-distance plan achromatic objective (without cover glass) PL L 80X/0.80
Long-distance plan achromatic objective (without cover glass) PL L 100X/0.85 (spring)
Plan achromatic objective (without cover glass) PL 100X/1.25 (spring, oil)
converter
Five holes (inward ball positioning)
CCD connector
0.4X
0.5X
1X
0.5X with reticle, grid value 0.1mm/grid
camera
DV-1 with USB and Video output
DV-2 with USB output
DV-3 with Video output
3. Product Features
Equipped with large field eyepieces and long-distance plan achromatic objectives (without cover glass), the field of view is large and clear. Coaxial focusing mechanism for coarse and fine movement, adjustable for coarse movement, with limit locking device, fine movement grid value: 2μm. 6V 20W halogen lamp with adjustable brightness. The trinocular tube can freely switch between normal observation and polarized observation, and can carry out 100% light transmission photography.
observation system
Hinged viewing tube: trinocular viewing tube,
The single vision is adjustable, the lens barrel is tilted 30 degrees,
Can be connected to photography and video equipment.
Eyepiece WF10X large field plan eyepiece, field of view ф18mm,
Provides a wide and flat viewing space.
10X reticle eyepiece, field of view ф18mm, used for center correction.
Mechanical stage Double-layer mechanical stage,
Size 210mm*140mm:
Movement range: 75mm*50mm,
Modest design concept,
Easier and more comfortable for users to operate the stage
Set up lighting system
6V20W halogen lamp,
Brightness is adjustable. Built-in field diaphragm,
Aperture diaphragm, (yellow, blue, green, frosted glass)
Color filter switching device, push-pull polarizer
Focusing mechanism
Coaxial focusing mechanism with coarse and fine movement, adjustable for coarse movement,
With limit locking device, inching grid value: 2 μm
-
