1. Product introduction

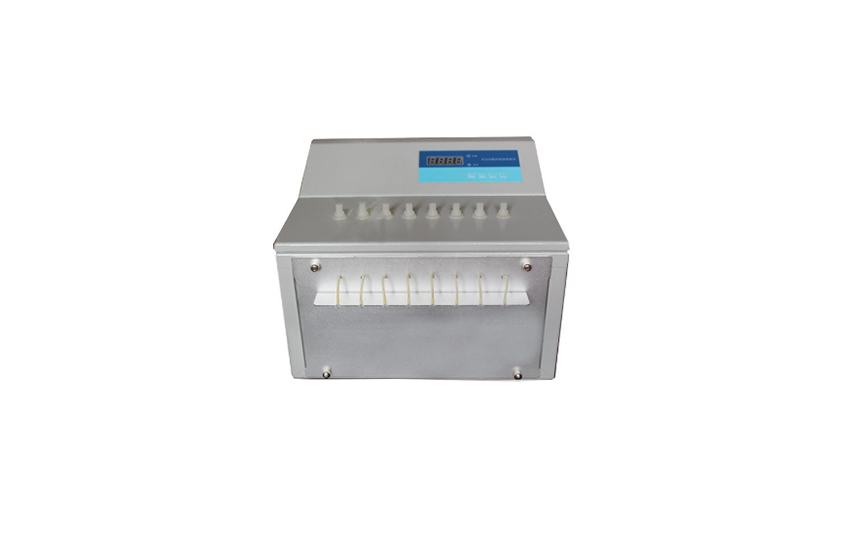

JC-ZDGX-8 automatic solid phase extraction instrument adopts high-precision metering pump to accurately control the flow rate of various solutions through the column, and can automatically complete 5 basic operation steps: activation, sample loading, rinsing, drying, washing Compared with the traditional solid phase extraction device, it saves up to 95% of time, solvent and labor costs, and can process up to 8 samples at the same time.

2. Product parameters

1. Flow rate: 0.01～420.00ml/h
2. Flow accuracy: ±0.1%
3. Linear correlation coefficient between speed and flow rate: ≥0.999
4. Speed: 0.1～100rpm
5. Long setting time: 100 minutes
6. Number of channels: 8 Weight: 13kg
7. Power supply: 220V/50Hz Power: 175W

3. Product features

1. Using numerical control pump to precisely control the speed, the single channel flow rate is 0.01～420.00ml/h, and the flow rate is controlled accurately and steadily; high
2. Stepless numerical control operation, digital display of flow rate, and timing function;
3. Applicable to 1mL, 3mL, 6mL, 12mL and other extraction columns from different manufacturers to meet different applications 4. The
structure of the chassis is easy to maintain, and the host and the elution rack are independent of each other, which is convenient for movement and operation;
5. The American high-precision metering pump adopts high-precision numerical control technology, low energy consumption and low noise;
6. The numerical control pump tube and small column The joints are made of American original long-life pipes, which are resistant to acid, alkali, organic solvents, and oxidants;
7. Simple operation, one-person operation can process 1 to 8 samples at the same time, greatly improving work efficiency;
