PRODUCTS CENTER
-

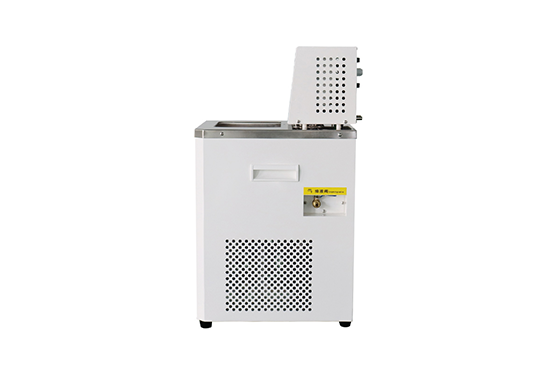

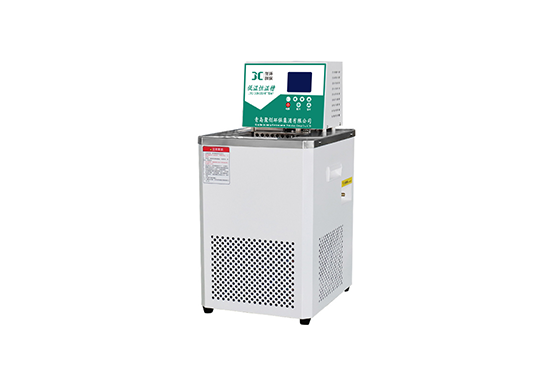

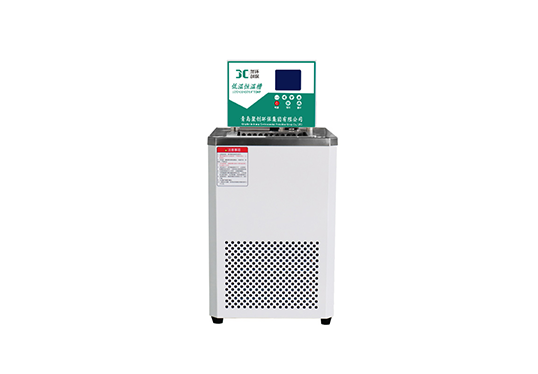

Product name：JCDC series low temperature thermostat -
Order number： -
Model：JCDC -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
It is widely used in colleges and universities, enterprise quality inspection and production departments in chemical, chemical, physical property testing and other industries. Provide users with a field source with controlled heat and cold, uniform and constant temperature, to conduct constant temperature experiments or tests on experimental samples or produced products, and can also be used as a heat source or cold source for direct heating or cooling and auxiliary heating or cooling.
2. Product parameters
model
Temperature range ( °C)
Resolution ( °C)
Volatility ( °C)
Dimensions
power
（ Kw）
Tank volume ( L)
Slot opening ( mm)
Slot depth ( mm)
Pump flow ( L/min)
JCDC-0506
-5~100
0.01
0.03
320*370*675
0.8
7.5
180*160
150
6
JCDC-1006
-10~100
0.9
JCDC-2006
-20~100
1
JCDC-3006
-30~100
320*370*765
1.5
JCDC-4006
-40~100
400*450*940
2.1
JCDC-4506
-45~100
2.2
JCDC-0510
-5~100
0.03
320*370*765
1.3
10
180*160
200
6
JCDC-1010
-10~100
1.5
JCDC-2010
-20~100
1.8
JCDC-3010
-30~100
400*450*940
2
JCDC-4010
-40~100
2.1
JCDC-0515
-5~100
0.03
320*370*765
2.1
15
250*160
200
6
JCDC-1015
-10~100
2.2
JCDC-2015
-20~100
2.3
JCDC-3015
-30~100
400*450*940
2.4
JCDC-4015
-40~100
450*540*990
2.5
JCDC-0520
-5~100
0.05
400*450*1040
2.3
20
250*160
300
6
JCDC-1020
-10~100
2.4
JCDC-2020
-20~100
2.5
JCDC-3020
-30~100
2.6
JCDC-4020
-40~100
0.05
450*540*1090
2.7
JCDC-0530
-5~100
0.05
450*540*990
2.5
30
330*280
230
13
JCDC-1030
-10~100
2.6
JCDC-2030
-20~100
2.7
JCDC-3030
-30~100
2.7
JCDC-4030
-40~100
450*540*1090
3
JCDC-6006
-60~100
0.01
0.05
660*660*1250
3.2
7.5
180*160
150
6
JCDC-7006
-70~100
660*660*1350
3.3
JCDC-8006
-80~100
660*660*1350
3.5
JCDC-6010
-60~100
0.05
660*660*1250
3.4
10
200
JCDC-7010
-70~100
660*660*1350
3.5
JCDC-8010
-80~100
660*660*1350
3.6
JCDC-6015
-60~100
0.05
660*660*1250
3.5
15
250*160
200
6
JCDC-7015
-70~100
660*660*1350
3.6
JCDC-8015
-80~100
660*660*1350
3.7
JCDC-6020
-60~100
0.05
660*660*1350
3.7
20
250*160
300
JCDC-7020
-70~100
660*660*1450
3.8
JCDC-8020
-80~100
660*660*1450
3.9
13
JCDC-6030
-60~100
0.05
Advisory Service
4
30
330*280
230
13
JCDC-7030
-70~100
0.05
4.2
JCDC-8030
-80~100
0.05
4.5
● The following are the optional functions of the low temperature thermostat
Liquid level protection system ---if the limit liquid level is exceeded, the load will be forced to stop to escort the user's experiment.
RS485 communication interface--connect to a host computer such as a computer, and control the device and view data by the host computer software.
Multi-point correction function - can correct multiple temperature points at the same time to avoid the temperature difference caused by the linear error of the sensor.
External PT100 - can realize precise temperature control of external circulation.
Bracket - to meet different containers placed in the tank, to avoid submersion into the constant temperature liquid.
3. Product Features
● The latest self-developed temperature control technology, equipped with high-standard PT100 and all imported electronic components.
● The software system can correct the error between the displayed temperature and the actual temperature, so that the displayed temperature value is accurate.
● Standard large-screen LCD display, multiple data at a glance, temperature display resolution up to 0.01℃.
● With over-temperature protection, over-temperature beeping alarm, over-temperature alarm temperature can be set, and the load can be automatically cut off when over-temperature occurs.
● With timing function, the total working time of the equipment can be set, and the load will be cut off automatically when the time comes.
● Concealed cooling coil design ensures more space for use in the tank.
● The intelligent software has strong temperature stability, PID can automatically adjust the best parameters according to different media, and special users can manually re-adjust the parameters.
● Use the software to digitally lock the setting values of the control system to avoid misoperation by irrelevant personnel and ensure the correctness of the experimental data.
● High-efficiency hermetic compressor refrigeration, fast cooling speed, with multiple protections such as overheating and overcurrent.
● Equipped with internal and external circulation functions as standard, with 10mm outer diameter tubes at the inlet and outlet of the external circulation, to meet the different needs of users in multiple scenarios.
-
