1. Product introduction

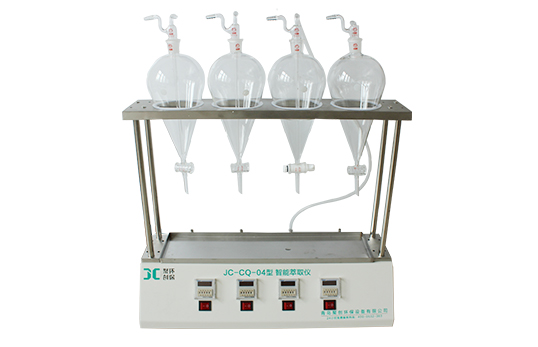

JC-CQ-04 type, liquid-liquid extraction device, is mainly used to replace the hand-crank extraction in "liquid-liquid" extraction and optimize the "liquid-liquid" extraction process. This instrument can replace manual shaking, put the instrument in a fume hood, and no longer need to manually deflate during the shaking process. It reduces the labor intensity of the experimenter and protects the health of the operator. This instrument has high extraction efficiency and is an indispensable common extraction instrument in the laboratory. It can be widely used in the extraction of surface water, industrial wastewater, and domestic sewage.

2. Product parameters

1. Use voltage: 220V50HZ

2. Dimensions: 550MM×200MM×600MM

3. Approximate weight: 5KG

4. Capacity: 1000ml×4

5. Power: 50W

6. Exhaust volume: 4×2L

7. Each instrument has four sets of glass instruments, four air pumps, and four time tables (optional). Each group of glass instruments can be used alone, working independently, without interfering with each other; it can also be used alone at regular intervals, working independently without affecting each other.

3. Product Features

1. High extraction efficiency ≥95%.

2. The extraction speed is fast, and multiple samples can be extracted simultaneously in 3 minutes.

3. High degree of extraction automation, degassing while extracting.

4. Avoid direct contact between experimenters and toxic extraction solvents.

5. Suitable for all liquid-liquid extraction work.

6. Wide sampling range: 1000ml.

7. The extraction time can be set arbitrarily, and the gas flow can be adjusted.

8. Instrument material: Sanitary stainless steel spray.
