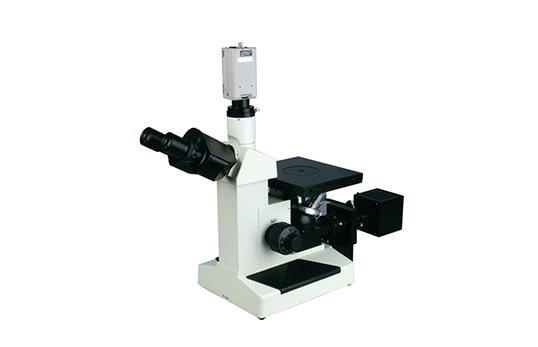

Product name：JC-XTL-4XC metallographic microscope -
Order number： -
Model：JC-XTL-4XC -
Stock status：Delivery according to contract -
Logistics：by sea, by air, by express, etc.
- Product Introduction
-
1. Product introduction
JC-XTL-4XC metallographic microscope is mainly used to identify and analyze the internal structure of metals. It is an important instrument for metallographic research on metallography and a key equipment for the identification of product quality in the industrial sector. It is mainly used for identification and analysis. The organizational structure of various metals and alloys is used in factories or laboratories for quality identification of castings, inspection of raw materials, or research and analysis of metallographic structures after material processing.
2. Product parametersserial number
name
technical parameter
1
flat field eyepiece
WF10X / ф18 、 WF12.5X / ф15 、
2
reticle eyepiece
WF10X/ф18, 0.1mm scale cross reticle, adjustable focus
3
Plan Achromatic Objectives:
10X/0.25, 20X/0.45, 40X/0.65 (spring), 100X/1.25 (oil, spring)
4
total magnification
100X-1250X
5
Trinocular observation head:
Hinged 30° tilt
6
converter:
four holes
7
Coarse and fine focus range:
25mm micro-movement grid value: 2um coarse and micro-movement coaxial focusing
8
Stage:
Double layer mechanical size 180x150mm
9
Stage movement range:
Movement range 15X15mm ф10/20mm slides, each with a vernier grid value of 0.1mm
10
Pupil distance:
55-75mm
11
Mechanical barrel length:
160mm
12
illumination:
Brightness adjustable with variable diaphragm Halogen tungsten bulb 6V20W
13
Instrument weight
Net weight 8.5kg Gross weight 10.0kg
14
Instrument size
Instrument size 20X56X35(cm) Package size 29X43X59(cm)
Detail image
observation system
Hinged viewing tube: binocular viewing tube,
The single vision is adjustable, the lens barrel is tilted 30 degrees,
Comfortable and beautiful, trinocular observation tube,
Can be connected to photography |, video equipment.
Eyepiece: WF10X large field eyepiece,
Field of view ф18mm,
Provides a wide and flat viewing space.
Mechanical stage
Mechanical mobile loading platform,
Built-in rotatable round stage plate,
The circular stage plate can be rotated for polarized light observation,
To meet the requirements of polarized microscopy.
Lighting system
Using the Kola lighting method, the aperture diaphragm and the field of view diaphragm can be adjusted through the dial to make the adjustment smooth and comfortable. The optional polarizer can adjust the polarization angle by 90 degrees, and the microscopic images under different polarization states have been observed
Note: Polarized light observation requires an optional polarizing device
Optional technical parameters:
serial number
name
technical parameter
1
camera
①Camera + image capture card has the functions of single, timing, continuous image capture, multimedia connection, print output, etc.
②The digital camera of 1.3 million, 2 million, 3.2 million and 5 million pixels has the functions of single, timing, continuous image acquisition, scale display, measurement and other functions, and can be connected to multimedia, printing, EMAIL and other output methods.
③Digital camera + basic measurement management software 15 million pixel SLR camera, with real-time image acquisition, image fusion, display scale, measurement and other functions, can be connected to multimedia, printing, EMAIL and other output methods
2
Image Analysis Software
①Professional quantitative metallographic analysis software UV-MA includes more than 400 automatic grading items in line with GB, YB, JB, ASTM and other standards, with automatic grading of metallographic images, map comparison, calibration measurement, fixed size printing , view maps, output reports and image fusion and other functions.
②The mineral phase analysis software UV-K can quantitatively analyze the mineral phase by optimizing the coloring processing and measurement of the microscopic image. It can be collected in a single sheet and continuously; it can display a ruler; it can measure the length, angle, radius, perimeter, area, etc. of the microscopic image; it can be connected to multimedia, printing, EMAIL and other ways to output.
③ The metallographic analysis software UV-ME has a clear interface, simple operation, complete basic functions, and reasonable price. At the same time, ten metallographic analysis items that conform to GB and industry JB/YB standards can be installed free of charge according to the needs of users. It can be collected in a single sheet and continuously; it can display a ruler; it can measure the length, angle, radius, perimeter, area, etc. of the microscopic image; it can be connected to multimedia, printing, EMAIL and other ways to output.
④The basic measurement management software UV can be collected in a single, timed, and continuous manner; it can display the ruler and magnification; it can measure the length, angle, radius, perimeter, area, etc. of the microscopic image; it can be connected to multimedia, printing, EMAIL output in various ways.
3
Camera interface
Camera interface: 1X, 0.5X
Digital camera interface: 1X, 2.5X/4X
4
objective lens
Plan Achromatic Objectives: 4X, 60X, 80X
5
ruler
Objective micrometer 0.01mm
Eyepiece micrometer: 0.1 feet, 0.05 feet, 0.5 mesh, 0.2 mesh, 0.1 coordinate
3.product features
1.traditional models, stable quality, clear imaging.
2.The planetary coaxial coarse and fine focus adjustment device is adopted, and the focus adjustment is comfortable and stable.
3.Using flat field objective lens and flat field eyepiece, the field of view is flat and the definition is high.
4.Two-way optical output, one is used for observation and the other is used to connect the camera device.
5.It adopts a double-layer mechanical stage with a scale and an epi-illumination device, with a variable light barrier, and the brightness can be adjusted evenly. -
