1. Product introduction

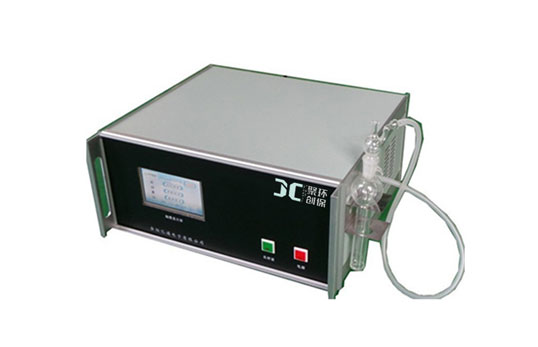

Cold atomic absorption mercury detector is a new intelligent mercury detector introduced by our company. Cold atomic absorption method, based on elemental mercury at room temperature, can be volatilized into mercury vapor without heating, and has a strong absorption effect on ultraviolet rays with a wavelength of 253.7nm. Within a certain range, the concentration and absorption value of mercury proportional to Beer's law. Directly measure the mercury content and directly read the measured concentration. This instrument is suitable for environmental monitoring, tap water, chemical industry and other industries to measure the mercury content in water, air, soil, food, cosmetics, and chemical raw materials.

2.product parameters

1. measurement principle: cold atomic absorption method.
2. Automatically calculate and directly read the concentration of mercury without user conversion.
3. Measuring range: 0-10ng/ml (when it is higher than 10ng/ml, it can be measured by dilution).
4. Lower limit of detection: 0.2ng/ml
5. Linear correlation coefficient: R≥0.995
6. Simultaneous display: mercury concentration ng/ml, temperature and humidity*.
7. Color touch screen, time and date memory function*.
8. With data query function, 256 groups of data are stored.
9. The instrument has a working curve calibration function, which automatically saves the
working curve according to user needs, and directly uses the last curve to measure directly next time it is turned on.
10. Flow range: 1.5L/min
11. Power supply voltage: 220V+10%
12. Dimensions of the instrument: 360×320×160mm3
13. Ambient temperature: 0-40℃

3. Product features

1. Large-screen color touch display Screen.
2. The built-in mercury detection standard curve is very convenient for users to calibrate and automatically store the working curve.
3. Using single chip control and calculation technology, it can directly display: mercury concentration ng/ml, temperature and humidity. No manual calculation is required.
4. The instrument has a storage function, which automatically stores the measurement data.
5. The instrument has a data query function, which can directly query the date, time and measurement value of the measurement.
