PRODUCTS CENTER
-
Product name锛歀aboratory Bottle Washer JC-XPJ-60 -
Order number锛歈X-1001-06 -
Model锛欽C-XPJ-60 -
Stock status锛 -
Logistics锛歴ea , air
- Product Introduction
-
Product introduction
The on-board vessel cleaning machine can be placed on the test-bed or embedded in the test-bed, which can realize the cleaning of laboratory vessels at any time, that is, use and wash; It can be widely used in laboratories such as university scientific research, government testing, factories and enterprises with small amount of cleaning and requiring rapid cleaning.
Product Parameter
ITEM JC-XPJ-60
Effective volume(L)
110
SIZE(W*D*H)mm
530*665*657
Lumen size(W*D*H)mm
468*447*436
voltage(V/Hz)
220/50
Maximum cleaning height锛mm锛
235
Circulating pump(KW)
0.25
Water heating power(KW)
3
Power plug style
16A plug
work environment锛埪C锛
5-35
product feature
Small and exquisite, light weight, two people can easily lift; It can be placed on the test bench or embedded in the test bench
The shell is 304L stainless steel and the cleaning chamber is 316L stainless steel, which is corrosion-resistant and easy to clean.

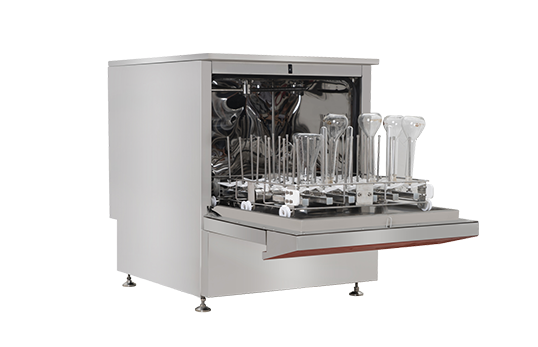

A layer of cleaning rack and basket can be placed in the cleaning chamber, which can be used and washed at any time. 126 test tubes or liquid bottles can be cleaned at a time.
The bottom is retracted design, with built-in double water inlets, which are connected with tap water and pure water at the same time. The pure water has built-in booster pump without additional pressurization.
路Control system
Microcomputer control, color LCD screen, operation screen tilt angle design conforms to the principle of ergonomics. Push button operation, easy to operate
Large screen LCD display, Chinese interface, with three cleaning modes of fast, standard and strengthening
It can set the cleaning time, water temperature, cleaning solution dose, etc
路Cleaning system
The cleaning water pump is a professional original circulation pump imported from Europe, with large scouring force and less cleaning water consumption. The single circulation water volume is about 10L.
The cleaning system adopts the rear water supply and central water distribution structure to ensure that the water outlet of each spray column is uniform and the background of cleaning utensils is consistent.
The cleaning basket is elastically connected with the host, and the joint material is polytetrafluoroethylene, which has good sealing, corrosion resistance and high temperature resistance, and the cleaning result is more stable.
The spray column of the cleaning basket is distributed in parallel, the cleaning amount is larger, and the utensils are easier to place
The top and bottom of the cleaning chamber are equipped with rotating spray arms to clean the internal and external surfaces of the utensils. The spray arms are fan-shaped distributed with three rotating arms, which can spray more thoroughly.
The cleaning heating power is 3KW, and the temperature rise can reach 5 鈩 per minute. The heating is fast and the cleaning is faster;
The disinfection temperature can be adjusted to 93 鈩 and the maximum cleaning temperature can be reached.
路Safety protection
The safety door lock is designed to prevent the door body from being locked and unable to be opened during cleaning, so as to prevent water spray and scald caused by mistakenly opening the door; It has the function of emergency door opening. It can also open the door and take out the utensils in case of power failure.
Perfect protection function, with missing detergent alarm, door opening alarm, overflow alarm, insufficient water inlet speed alarm, etc., with Chinese prompt and alarm reminder
