PRODUCTS CENTER
-
Product name：Viable Air Sampler -
Order number：FKC-I -
Model：FKC-I -
Stock status：10 -
Logistics：air transportation
- Product Introduction
-
Item Specification Sampling flow rate 100 L/min Nozzle velocity of sampling head 0.38 m/s, isokinetic sampling (basically consistent with cleanroom wind speed) Measurement range (1～9999) L Flow error ±5% at 100 L/min Petri dish Standard universal petri dish, Φ90×15 mm Power supply DC 16.8 V Continuous sampling duration ≥ 6 h Overall dimension Φ120 × 325 mm Instrument weight 2.6 Kg ± 0.5 Kg, subject to actual product Resolution 1 L Operating environment (-5～50) ℃, 5%～95% RH Data export U-disk export, view data in Excel Data storage Supports storage of 1000 data records
一、Product Introduction

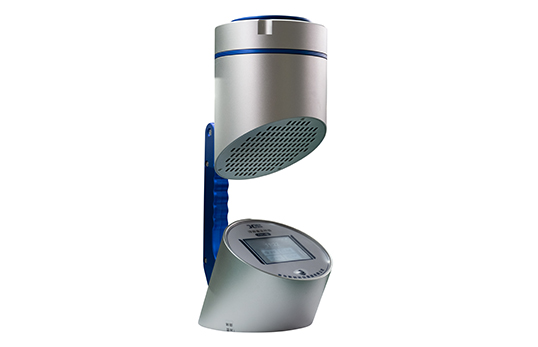

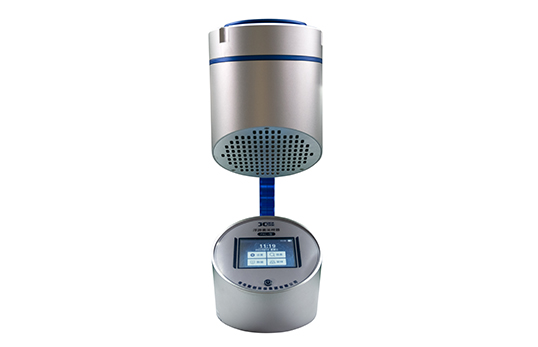

The FKC-I Planktonic Bacteria Sampler is a high-efficiency multi-hole impact-type airborne bacteria sampler. Designed based on the isokinetic sampling principle, the wind speed at its sampling inlet is basically consistent with the air velocity in cleanrooms, enabling a more accurate reflection of microbial concentrations within the clean environment.
During sampling, airborne bacteria-containing air is uniformly impacted onto the agar surface in a petri dish through specially machined, dense small holes. These viable microbial particles, after receiving sufficient and uniform nutrients on the agar surface, form colonies during incubation, facilitating subsequent laboratory testing.
Independently developed and manufactured by our company, this sampler is a high-efficiency multi-hole impact-type instrument based on the Anderson impact principle, with an Anderson Class 3 design rating. The sampling head features a number of specially designed micro-pores; as sampled air passes through the head, microorganisms are evenly distributed on the agar surface, minimizing the overlap of airborne particles and reducing microbial counting errors. The lower section houses the core control unit, which manages the instrument’s main operations and provides functions such as adjustable sampling volume, historical data storage, and USB export. With comprehensive functional design and simple operation, it is widely used in pharmaceutical manufacturing, food processing, public health, and other fields.
二、Working Principle
Independently developed and manufactured by our company, this planktonic bacteria sampler is a high-efficiency multi-hole impact-type instrument based on the Anderson impact principle, with an Anderson Class 3 design rating. The sampling head features a number of specially designed micro-pores; as sampled air passes through the head, microorganisms are evenly distributed on the agar surface, minimizing the overlap of airborne particles and reducing microbial counting errors. The lower section houses the core control unit, which manages the instrument’s main operations and provides functions such as adjustable sampling volume, historical data storage, and USB export.
三、Application Scope
It is widely used in pharmaceutical manufacturing, food processing, public health, and other fields.
四、Standards Compliance
· JJF 1826-2020 Calibration Specification for Air Microbial Samplers
· JJF-2017 Calibration Specification for Planktonic Bacteria Samplers
五、Key Features
1. Appearance & Operation: Sleek and simple design with easy, user-friendly operation.
2. Advanced Display: Touch-controlled, medical-grade LCD screen for stable display and flexible operation.
3. Data Storage: Automatically saves historical sampling data, with storage capacity for up to 1000 records.
4. Flow Calibration: Flow adjustment available under developer guidance.
5. Adjustable Sampling Volume: Sampling volume is adjustable from 1L to 9999L.
6. Battery Life: Continuous sampling time of up to 6 hours.
7. USB Export: Supports direct data export via USB drive.
8. Delayed Sampling: Ensures experimental data accuracy by preventing external interference.
